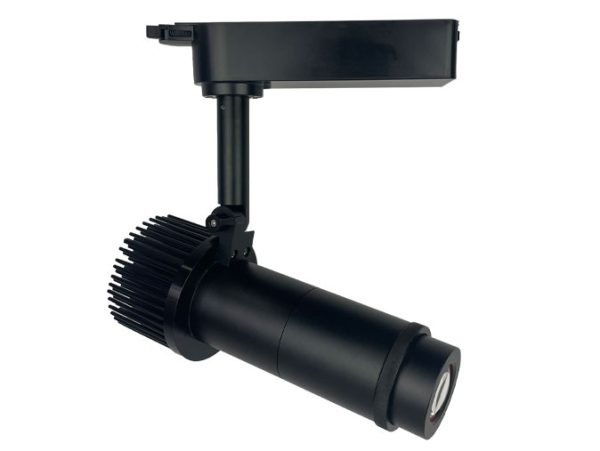

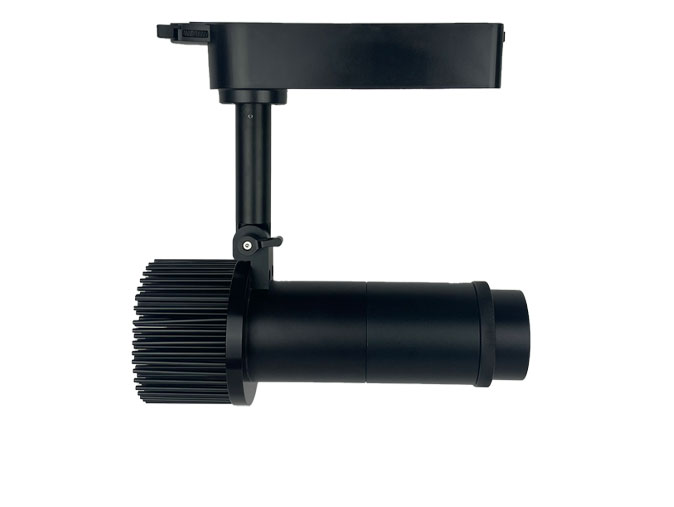

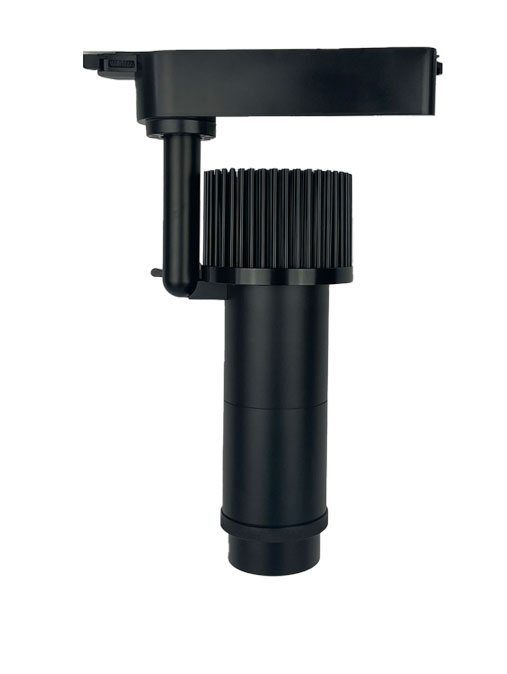

M33T Track Mount LED Gobo Projector

Combining a powerful LED, high quality driver and a great optical system, the M33T produces a crisp vivid gobo image and crystal clear projection right to the edge. It is suitable for a 3 circuit lighting tracks.

This fixture is a perfect addition for well lit areas such as showrooms, or shopfronts.

Features

High quality optical system for sharp image quality
Simple focusing after install
External adjustment for changing gobo orientation

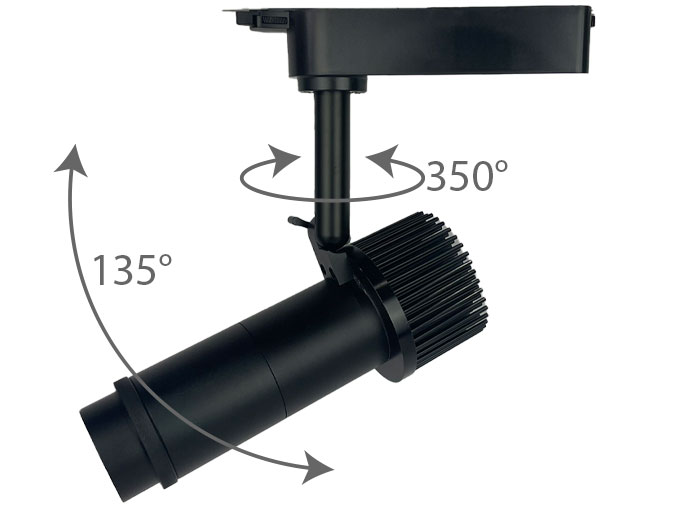

350° rotation around vertical axis
135° around horizontal axis, using spring-loaded adjustable locking arm
Available in black as standard
3 Lens options available

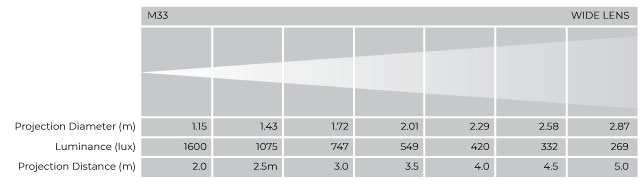

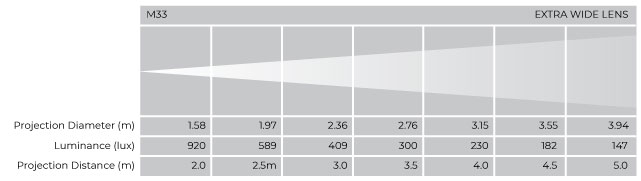

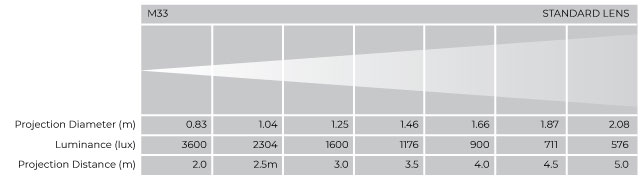

– see image size and brightness (photometric data)
Passive rear fin cooling
33W 50,000hr LED
Suits 3 Circuit 4 Wire Track
(suits Selux, EUTRAC & Global 3 circuit track)
Cool white LED as standard. Warm white available on request
24 month warranty
Dimmable via dimmed mains supply – standard

Projection Solutions: Directional Signage | Retail Signage | Museum & Art Gallery Projection

fixture in use Specifications Image Size and Brightness downloads

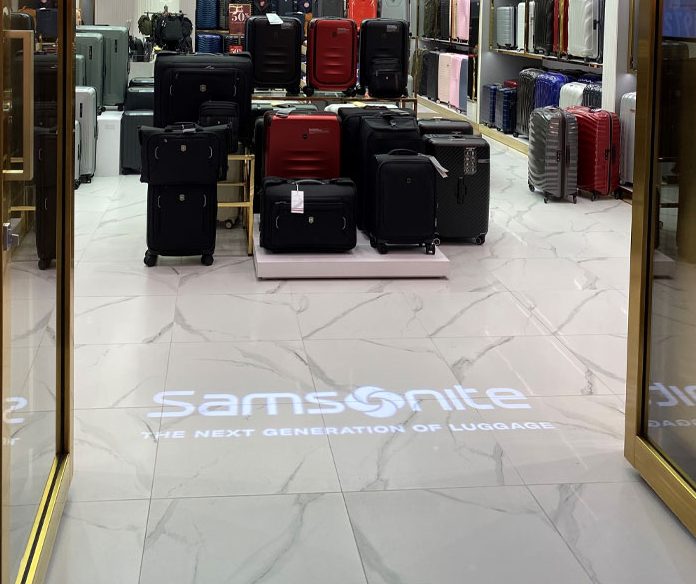

Samsonite | M33 Surface Mount LED Gobo Projector with a B&W Glass Gobo

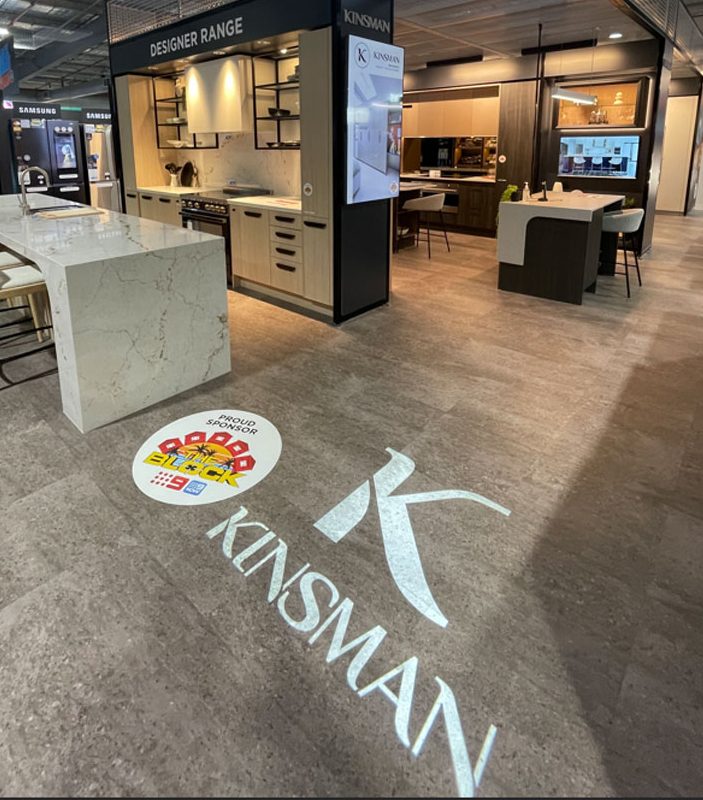

Kinsman Kitchens | M33 Surface Mount LED Gobo Projector with B&W Glass gobo

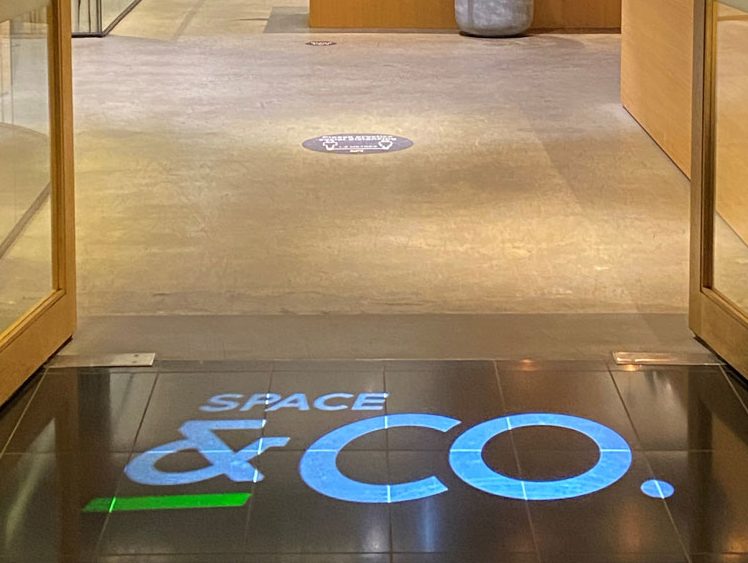

Space&Co | M33 Surface Mount LED Gobo Projector with Spot Colour Lime Green gobo

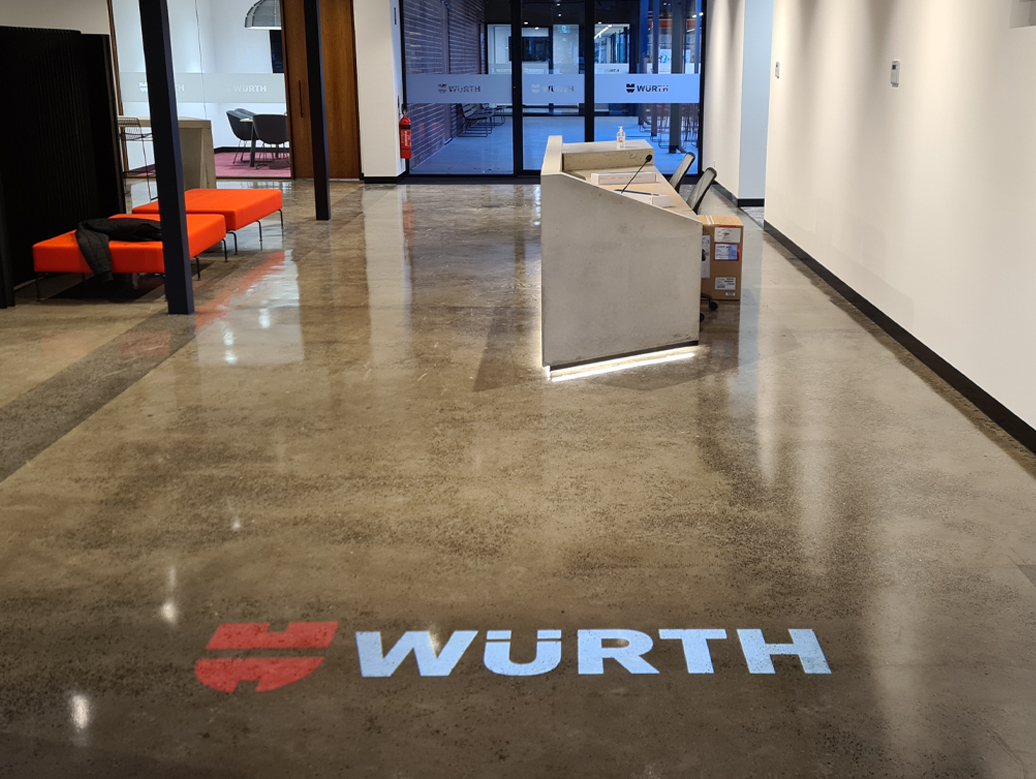

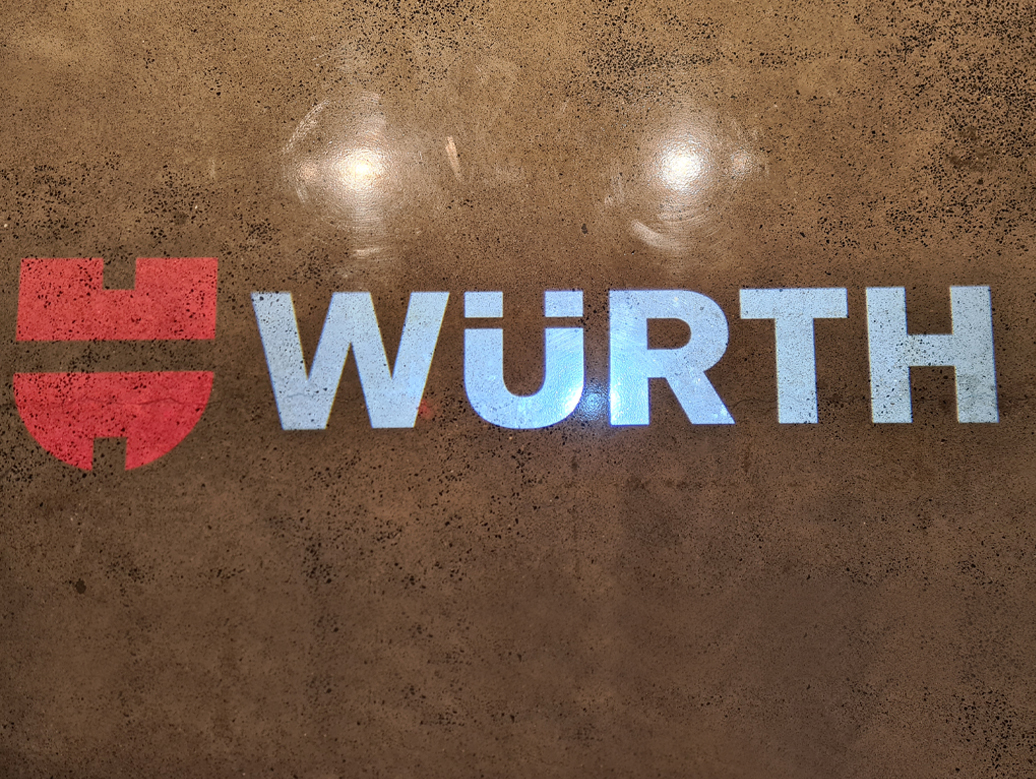

Wurth | M33 Surface Mount LED Gobo Projector

Physical Dimensions

Length (excluding lens): 230mm
Height: 245mm
Weight: 1.5kg

Electrical

Power Supply Input Voltage: 220-240V AC
Average Power Consumption: 33 Watts
Suits 3 Circuit 4 Wire Track (selux, EUTRAC & Global 3 circuit track)

Gobos

Outside Diameter: 37.5mm (+0/-0.3mm)
Maximum Image Diameter: 28mm (for flat field crisp projection eg. logos)
Maximum Thickness: up to 5.0mm

Optics

Light Source: 33W LED Capsule
Cool white 7000k as standard / warm white 3000k available on request
LED Lifetime: 50,000 hours*
*figure obtained under manufacturer’s test conditions
