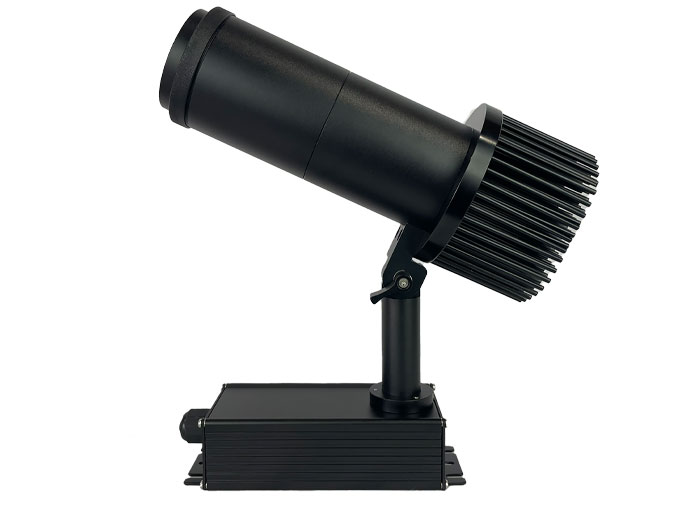

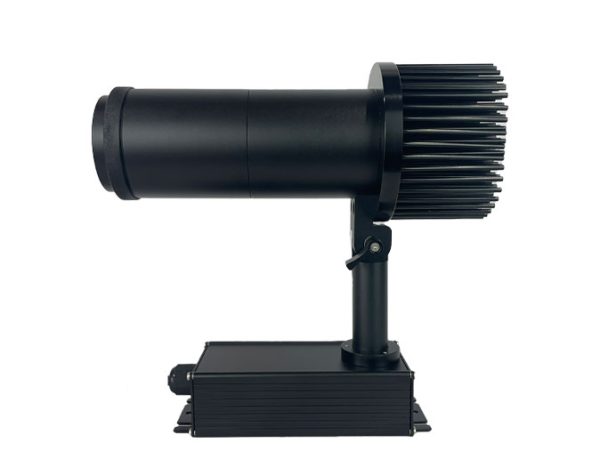

M33 Surface Mount LED Gobo Projector

A compact, light weight LED gobo projector with fixed lens perfect for permanent installations including factory safety signage, business signage as well for use at events.

The high quality optical system and flat field produces a crisp vivid gobo image and crystal clear projection right to the edge.

This unit is supplied with a cool white LED as standard, but warm white is available upon request.

Features

  • High quality optical system offers sharp image quality
  • Standard 22° Medium Lens
  • Passive rear fin cooling making it suitable for indoor use
  • Currently available in black
  • 33W 50,000hr LED
  • Cool white LED as standard. Warm white available upon request
  • Fitted with an Australian standard 3 pin plug 240V AC
Projection Solutions: Logo projection for a business entrance | Exhibition display booths | Building tenant list | Directional signage | Image projection in bars or clubs | Projection safety signage

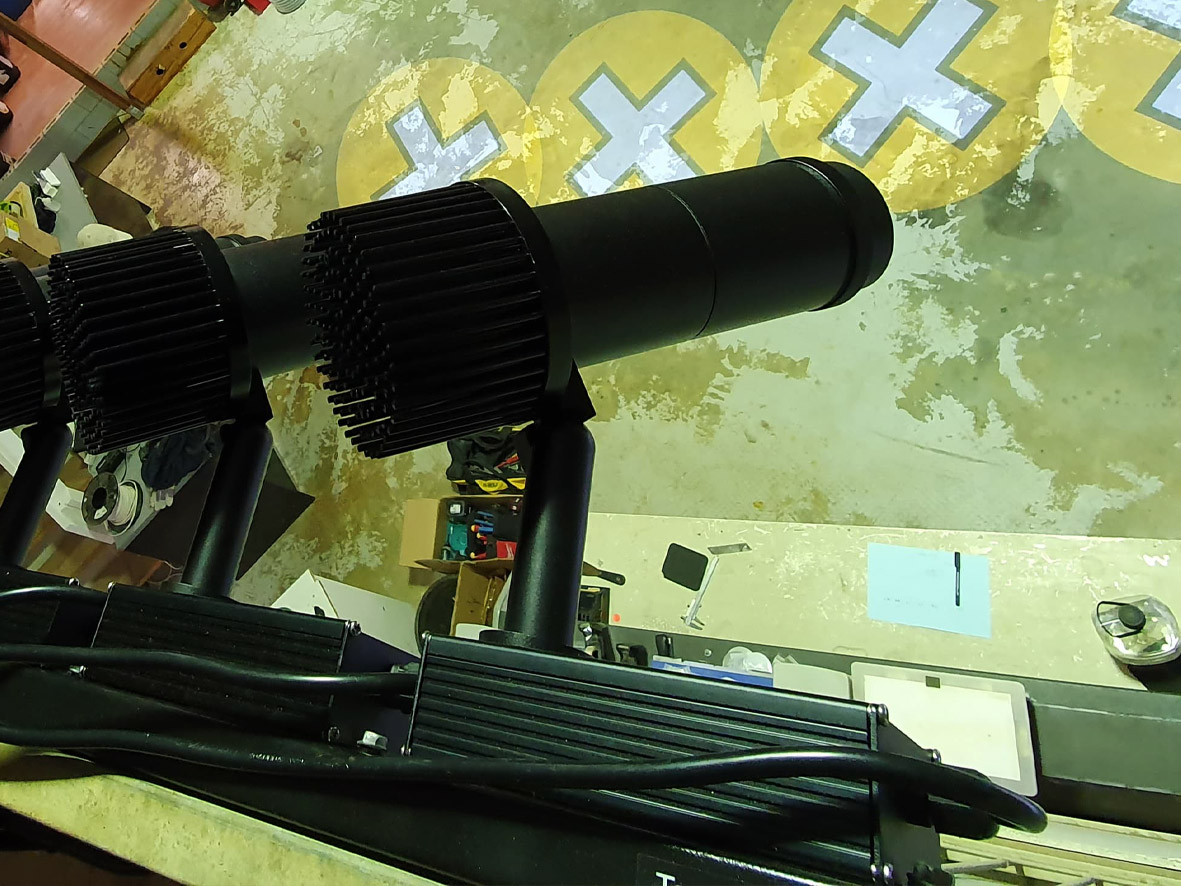

fixture in use Specifications Image Size and Brightness downloads

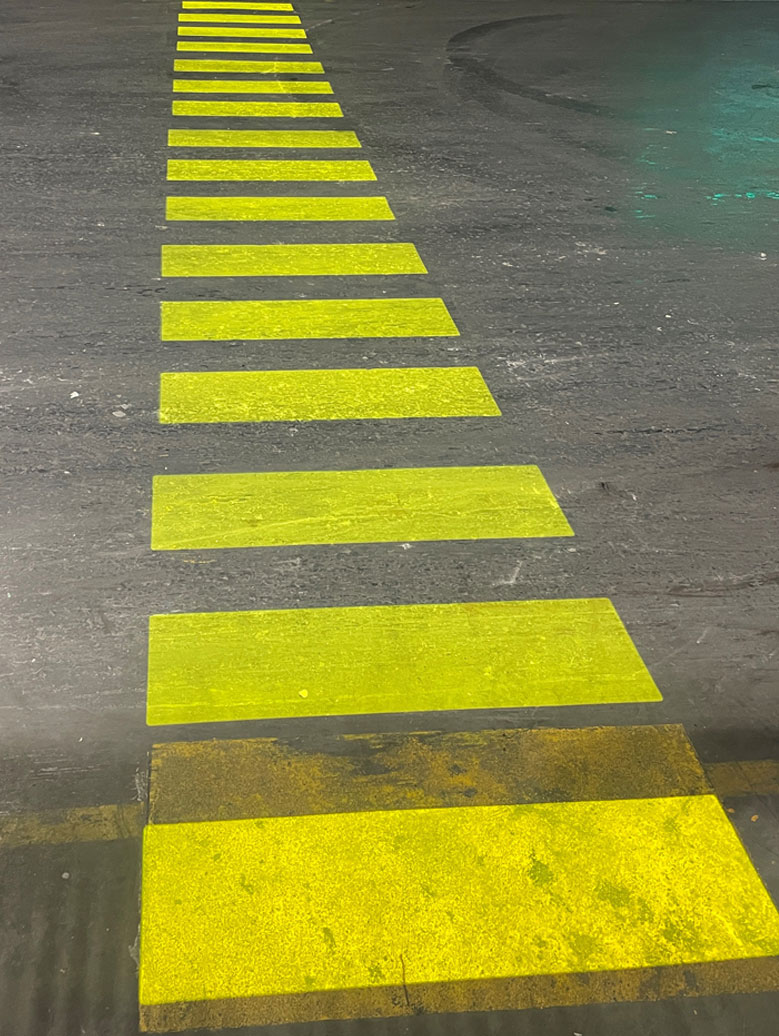

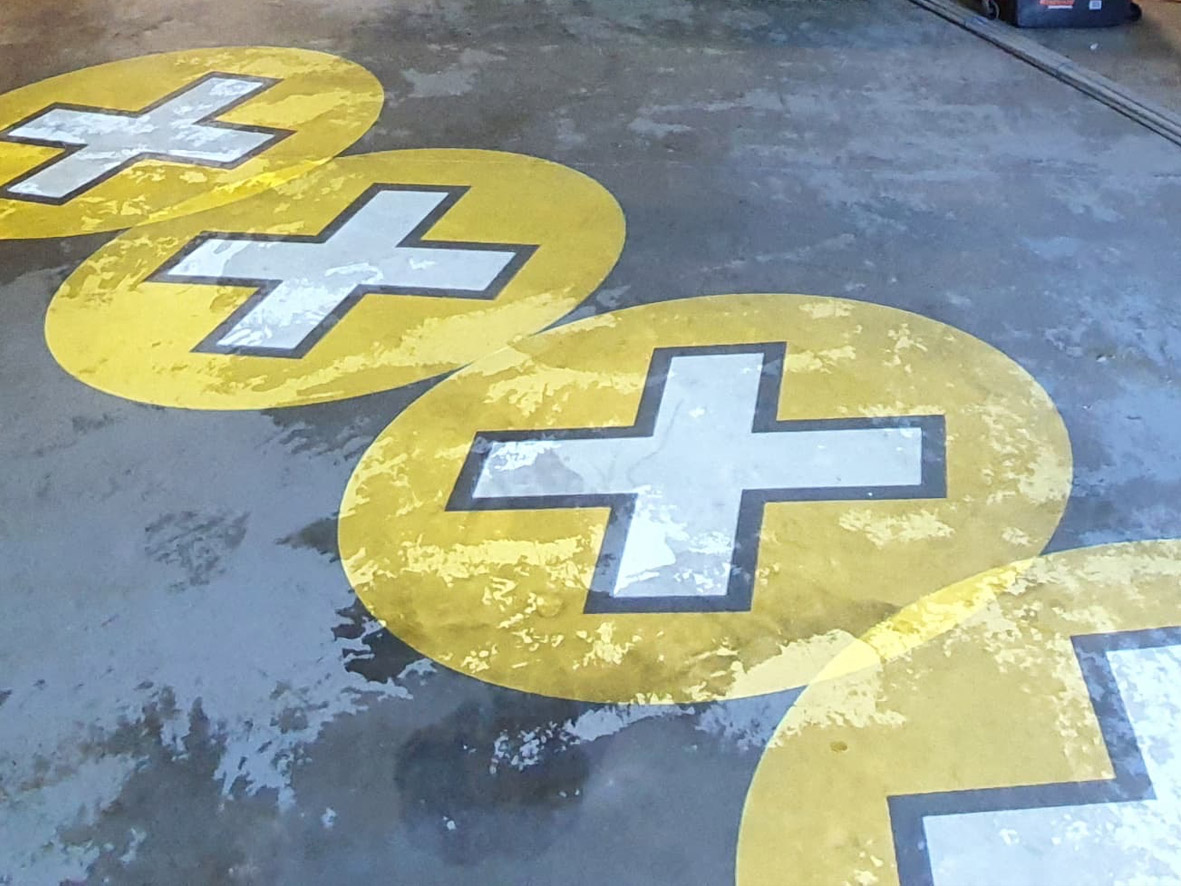

Yellow Warning Safety Signage | M33 with stock Spot Colour glass gobo

Yellow Warning Safety Signage | M33 with stock Spot Colour glass gobo

Wurth | 2 x M33 LED Gobo Projector. Both fitted with B&W Glass Gobos, one with a red filter

Wurth | 2 x M33 LED Gobo Projector. Both fitted with B&W Glass Gobos, one with a red filter

physical dimensions

  • Length (excluding lens): 256mm
  • Height: 234mm
  • Weight: 1.5kg

electrical

  • Australian standard 3 pin plug 240V AC
  • Input Voltage: 100-240V AC
  • Average power consumption: 33 watts

Gobos

  • Outside diameter: 37.5mm (+0/-.03mm)
  • Maximum image diameter: 28mm (for flat field crisp projection eg logos)
  • Maximum thickness: up to 5.0mm

Optics

  • Light Source: 33W LED Capsule
  • Cool white 7000k as standard / warm white 3000k available on request
  • LED Lifetime: 50,000 hours*
    * figure obtained under manufacture’s test conditions

Medium Lens
