M20D Downlight LED Gobo Projector

Designed to be recessed into the ceiling, the Grand Lighting M20D Downlight is perfect for a seamless look for your business.

Combining a powerful LED, high quality driver and a great optical system, makes this a downlight perfect for your permanent installation.

The high-quality optical system is the best we have seen, producing a crisp vivid gobo image. The flat field gives you a crystal-clear projection right to the edge.

The M20 Downlight is powerful enough for bright locations but can also be dimmed if required.

Features

  • Designed for recessed installation
  • High quality optical system for sharp image quality
  • Simple focusing after install

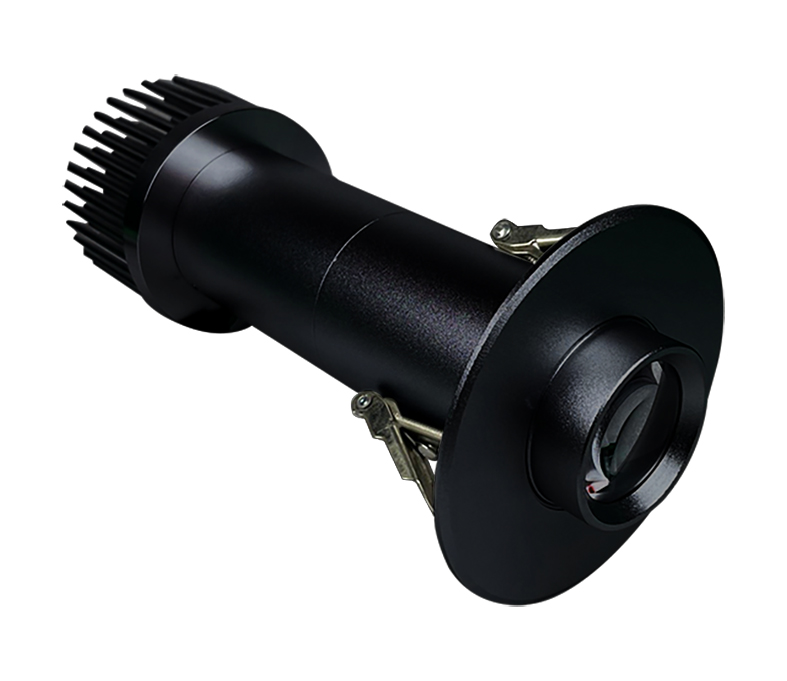

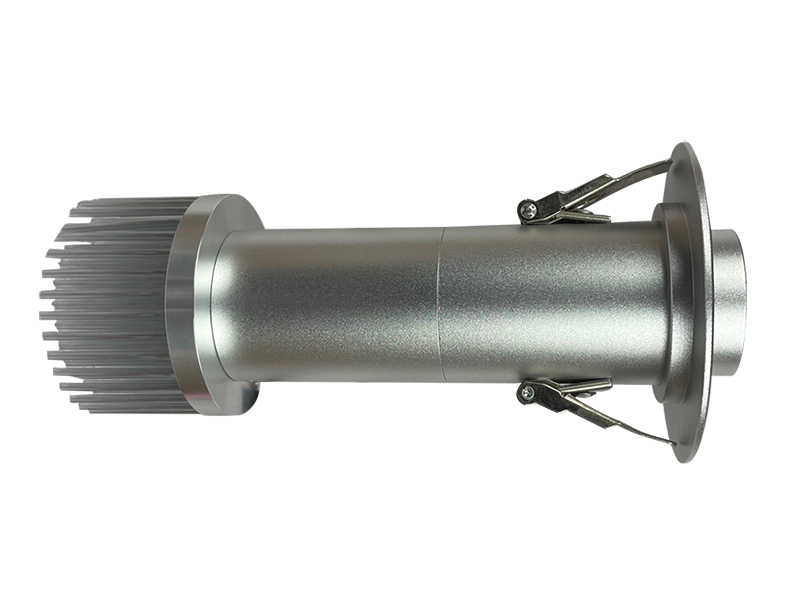

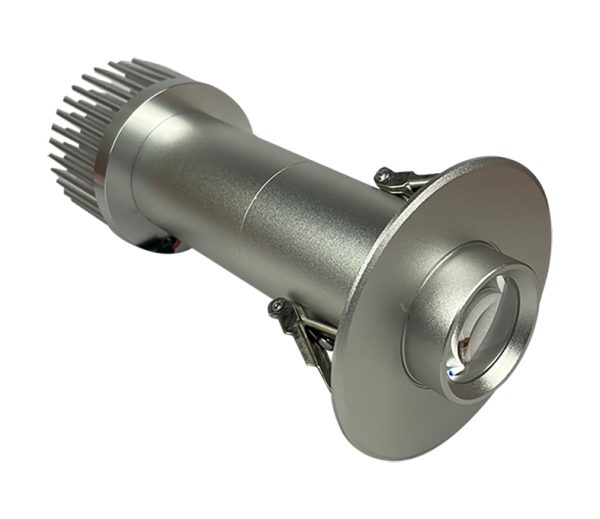

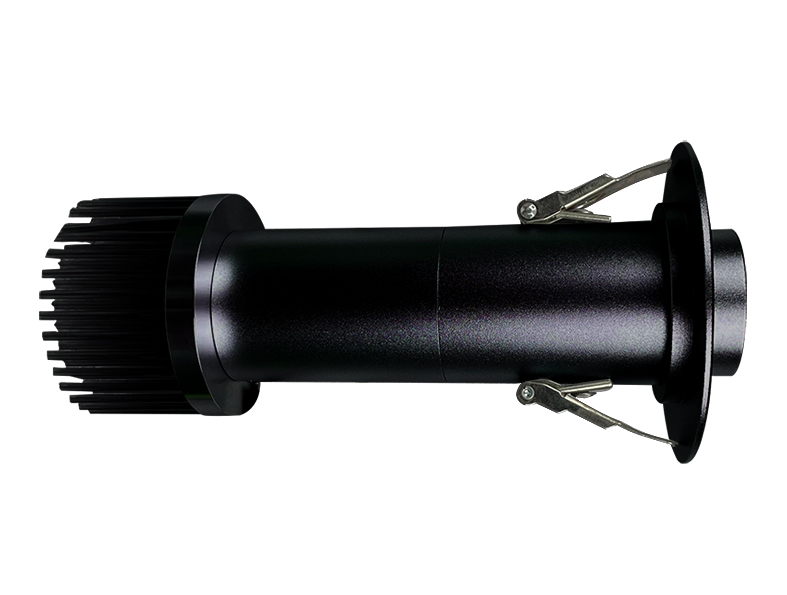

  • Available in either black or silver
  • Standard 22° lens
  • Passive rear fin cooling
  • 22W 50,000 LED
  • Cool white LED as standard. Warm white available on request
  • 24 month warranty
  • DALI control available
Logo projection for business entrance | Level or room numbering | Directional signage
fixture in use Specifications Image Size and Brightness downloads

Vue | M20D Downlight fitted with B&W Glass Gobo

Dexus Property Group | Grand Lighting M20A Surface Mount fitted with B&W Glass Gobo

Black Hide Steakhouse | Grand Lighting M20D Downlight fitted with B&W Glass Gobo

Physical Dimensions

  • Length (excluding lens): 210mm
  • Width: 100mm
  • Weight (with power supply): 500g
  • Minimum hole size for cut out 86mm, while the cover plate is 100mm, hole needs to be kept well within this
  • Please refer to manual for installation instructions and clearance requirements

Electrical

  • Power Supply Input Voltage: 220-240V AC
  • Average Power Consumption: 22 Watts
  • Australian Standard 3 Pin Plug 240V AC
  • The Grand Lighting M20D Downlight is supplied and matched with a driver meeting all Australian regulatory requirements for non IC rated commercial installations

Gobos

  • Outside Diameter: 37.5mm (+0/-0.03mm)
  • Maximum Image Diameter: 28mm (for flat field crisp projection e.g. logos)
  • Maximum Thickness: up to 5.0mm

Optics

  • Light Source: 22W LED Capsule
  • Cool white 700k as standard (warm white 3000k available on request)
  • LED Lifetime: 50,000 hours*
    * figure obtained under manufacturers test conditions
