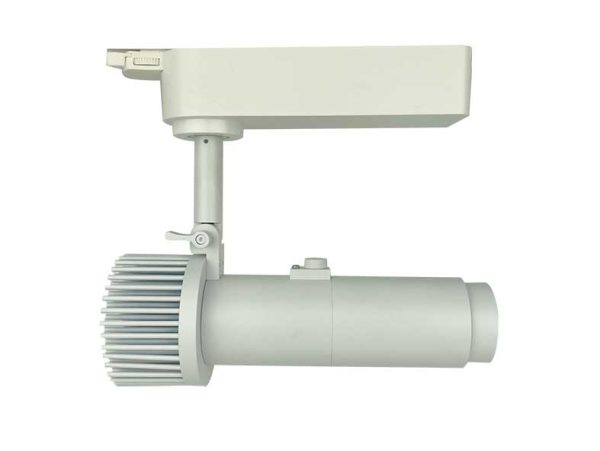

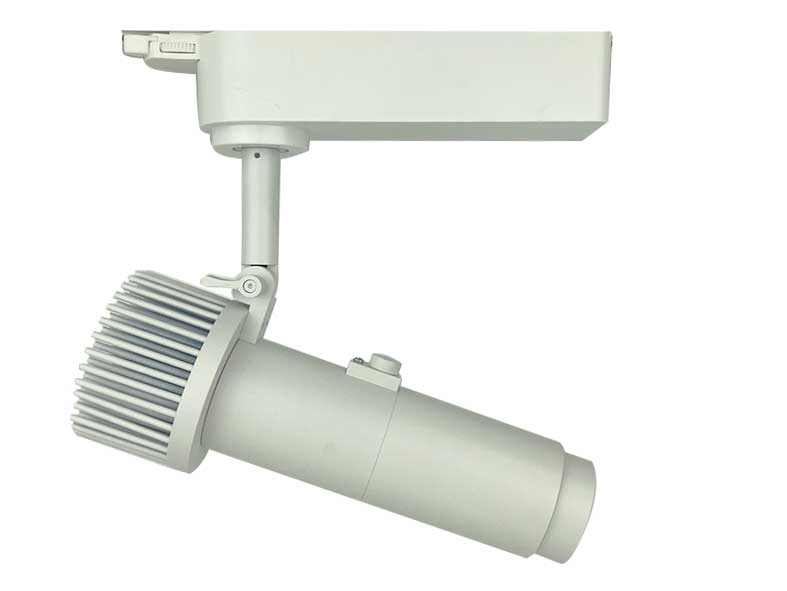

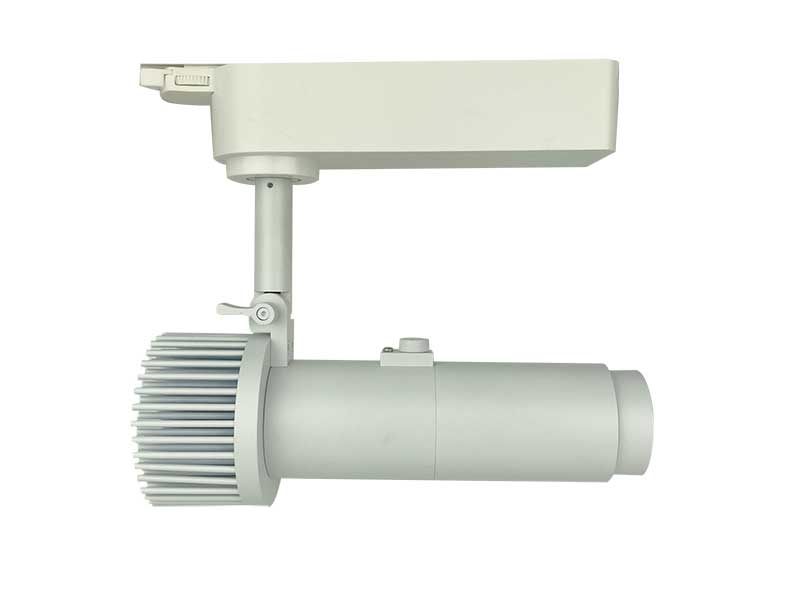

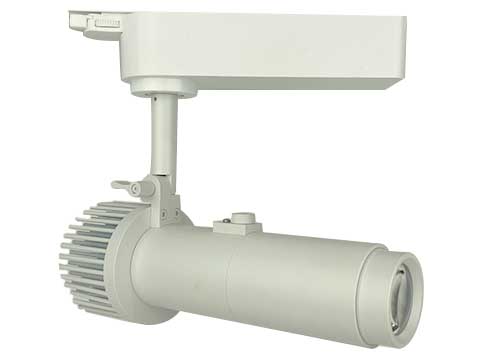

M20AT Track Mount LED Gobo Projector

Combining a powerful LED, high quality driver and a great optical system, the M20AT is a perfect addition for business or showroom projections.

It also features an external gobo adjustment to make it easy to adjust the orientation of your image.


  • High quality optical system for sharp image quality
  • Simple focusing after install
  • External adjustment for changing gobo orientation

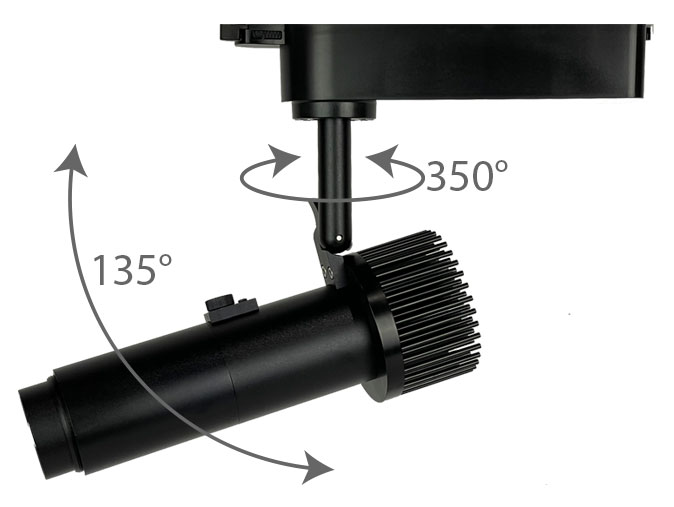

  • 350° rotation around vertical axis
  • 135° around horizontal axis, using spring-loaded adjustable locking arm

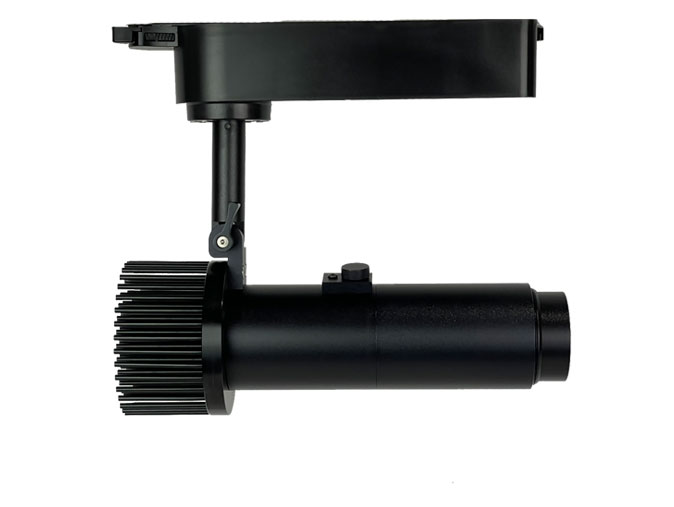

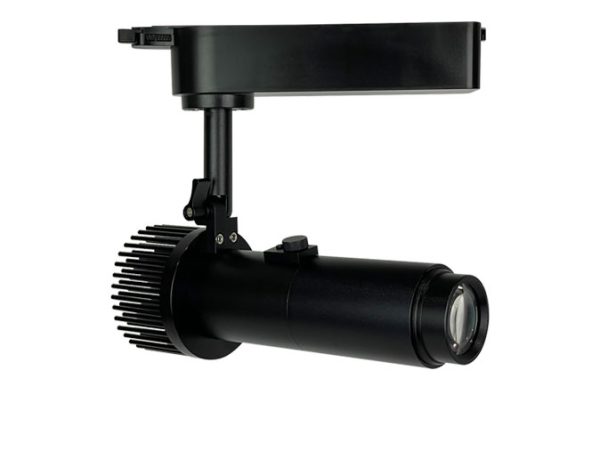

  • Available in black as standard
  • Standard 22° lens
  • Passive rear fin cooling
  • 22W 50,000hr LED
  • Suits 3 Circuit 4 Wire Track
    (suits Selux, EUTRAC & Global 3 circuit track)
  • Cool white LED as standard. Warm white available on request
  • 24 month warranty
  • Dimmable via dimmed mains supply – standard
Projection Solutions: Directional Signage | Retail Signage | Museum & Art Gallery Projection

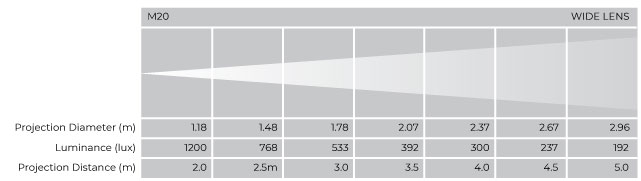

fixture in use Specifications Image Size and Brightness downloads

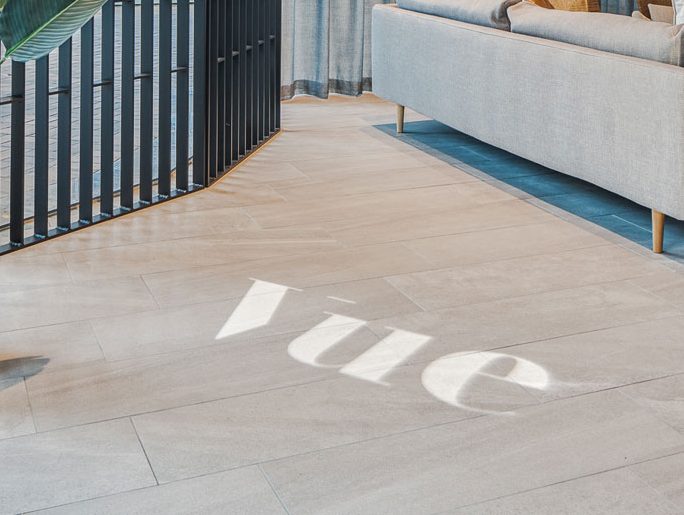

Vue | M20D Downlight fitted with B&W Glass Gobo

Hand Washing Station | M20AT with stock B&W glass gobo

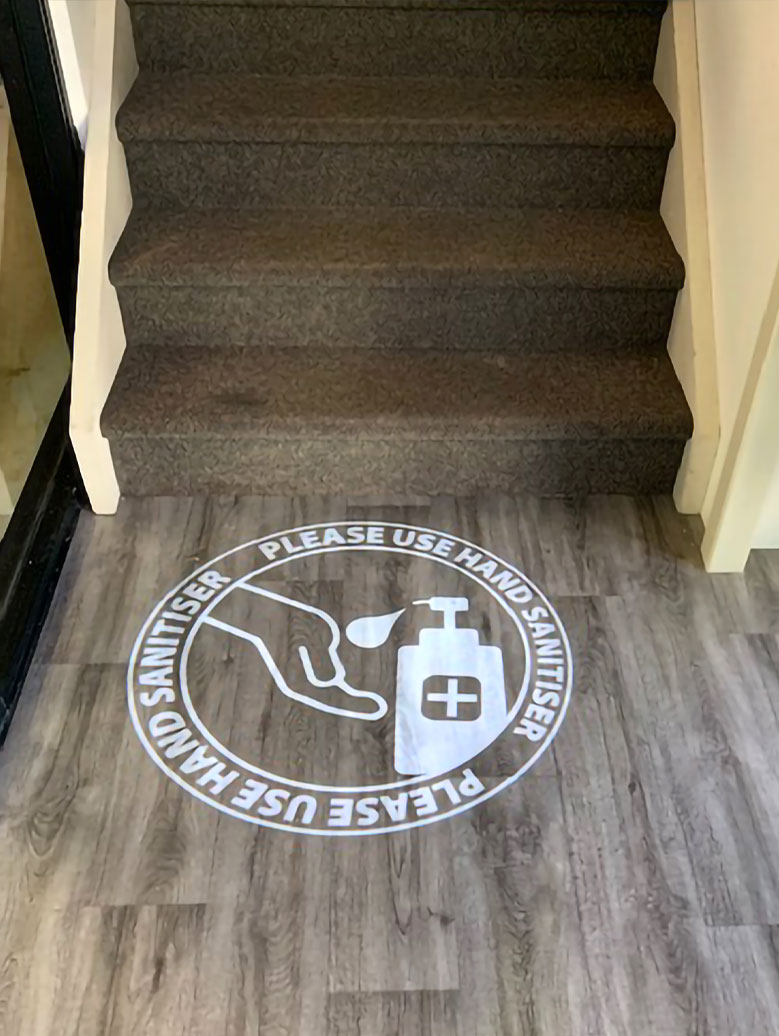

Hand Sanitiser B&W Glass Gobo | M20A Surface Mount

Dexus Property Group | M20 with custom B&W glass gobo

Mirosuna | M20 with custom B&W glass gobo and warm filter

Physical Dimensions

  • Length (excluding lens): 215mm
  • Height: 210mm
  • Weight: 1.2kg


  • Power Supply Input Voltage: 220-240V AC
  • Average Power Consumption: 22 Watts


  • Outside Diameter: 37.5mm (+0/-0.3mm)
  • Maximum Image Diameter: 28mm (for flat field crisp projection eg. logos)
  • Maximum Thickness: up to 5.0mm


  • Light Source: 22W LED Capsule
  • Cool white 7000k as standard / warm white 3000k available on request
  • LED Lifetime: 50,000 hours*
    *figure obtained under manufacturer’s test conditions

Medium Lens
