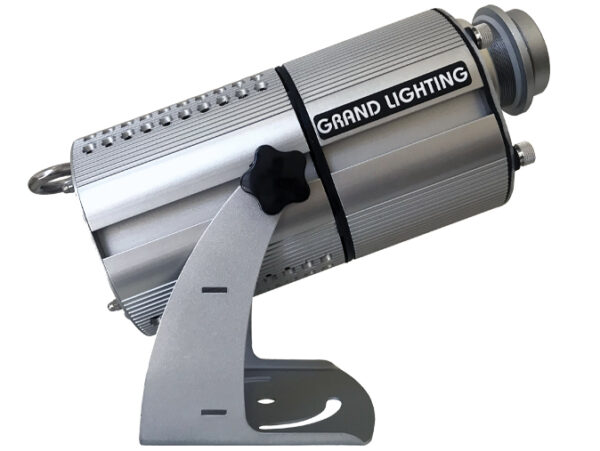

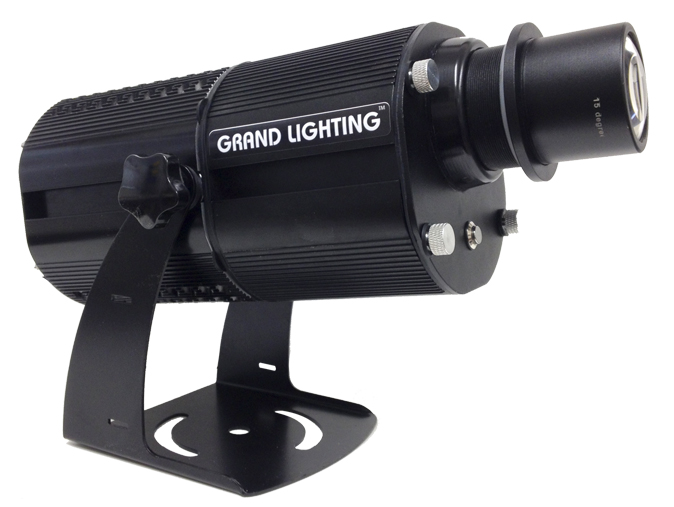

GL80_L25 Gen II LED Gobo Projector

Encased in an IP65 enclosure this fully weatherised fixture is perfect for your outdoor installation and compact and quiet to use indoors.

The high quality optical system produces a crisp vivid gobo image and the flat field gives you a crystal clear projection right to the edge.

All come with your choice of fixed lens to suit your location and built in gobo rotation that can be easily turned on or off using the front facia button.

Features

  • High quality optical system offers sharp image quality
  • IP65 suitable for indoor and outdoor use
  • 4 fixed lens options available
  • Built in rotation
  • Rear cooling fins and waterproof fan protected by 1.5mm mesh
  • Available in either black or silver
  • Cool white LED as standard. Warm white available upon request
Projection Solutions: Logo projection for a business entrance with a lot of ambient light | Exhibition display booths | Building tenant list | Directional signage | Footpath logo projection | Building Facia projection | Outside events | Pole mounted urban lighting design | Projection safety signage | Factory safety signage
fixture in use Specifications Image Size and Brightness downloads

CINCO Tasmania | Grand Lighting GL80 with custom spot colour glass gobo

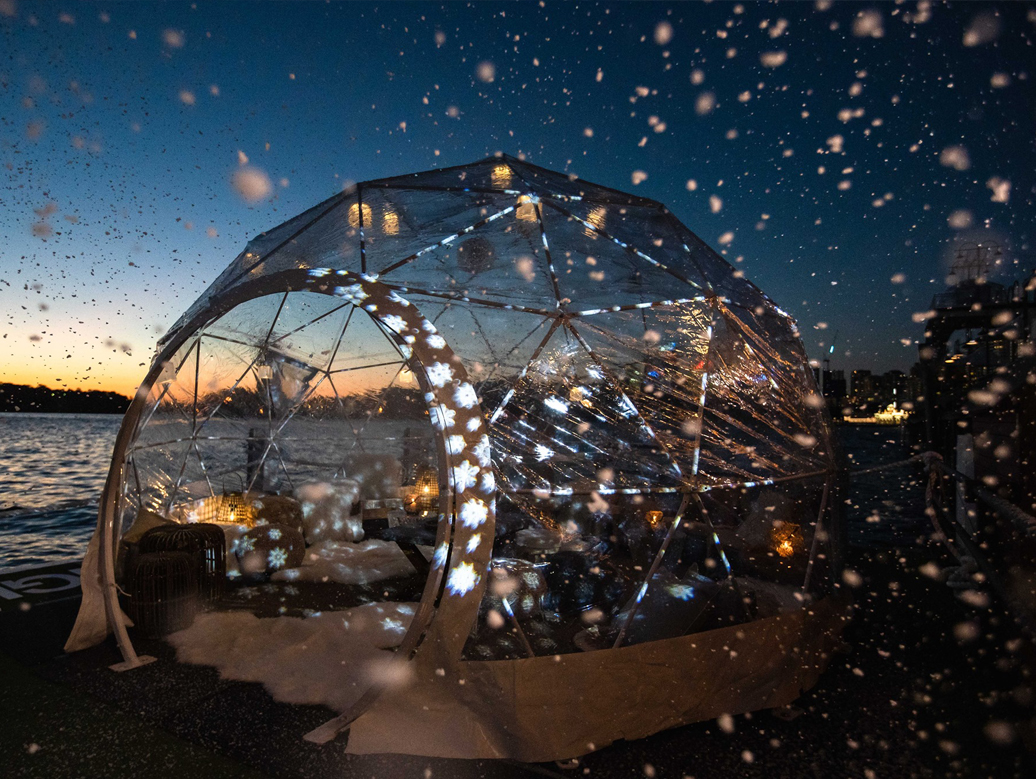

Pier One Sydney | Grand Lighting GL80 with stock B&W glass gobo

Pier One Sydney | Grand Lighting GL80 with stock B&W glass gobo

Garmin Exhibition | Grand Lighting GL80 fitted with custom B&W glass gobo

City of South Perth Urban lighting Design | Grand Lighting GL80 with stock B&W glass gobo

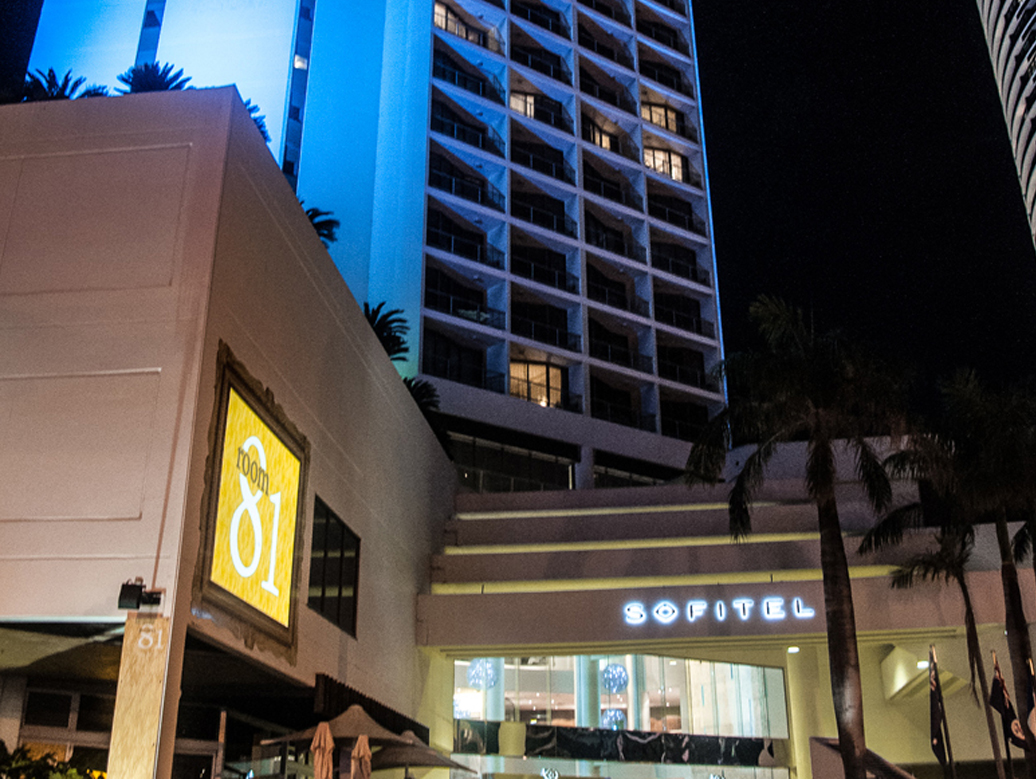

Room 81 at Sofitel Broadbeach | Grand Lighting GL80 with custom full colour keystone corrected gobo

Room 81 at Sofitel Broadbeach | Grand Lighting GL80 with custom full colour keystone corrected gobo

physical dimensions

  • Length (excluding lens): 250mm
  • Length (including lens): approx. 300mm
  • Width (with knobs): 190mm
  • Body Height: 135mm
  • Height (with base): 215mm
  • Weight: 2.9kg
  • External power supply: 195mm x 62mm x 38mm

electrical

  • External power supply IP65 Meanwell HLG-80H-20A
  • Input Voltage: 100-240V AC
  • Average power consumption: 60 watts

Gobos

  • Outside diameter: 53.3mm (+0/-.03mm)
  • Maximum image diameter: 25mm (for flat field crisp projection eg logos) / 30mm (for soft edges, eg: breakup images)
  • Maximum thickness: up to 5.0mm

Optics

  • Light Source: 60W LED Capsule
  • Cool white 7000k as standard / warm white 3000k available on request
  • LED Lifetime: 50,000 hours *
    * figure obtained under manufacture’s test conditions
  • F140 Very Narrow Lens – 13°
  • F100 Narrow Lens – 17°
  • F70 Medium Lens – 25°
  • F56 Wide Lens – 31°

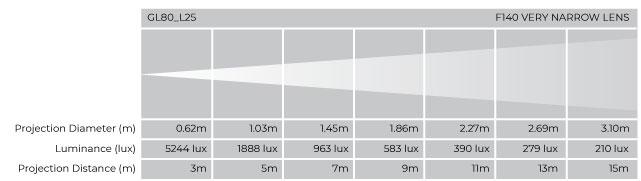

F140 Lens

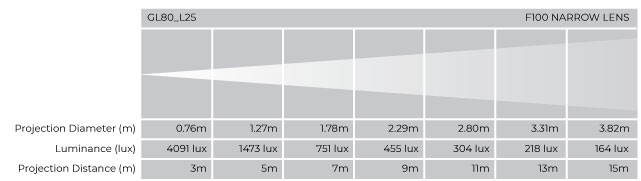

F100 Lens

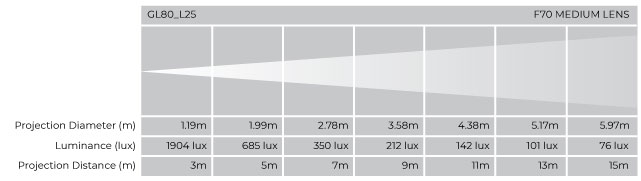

F70 Lens

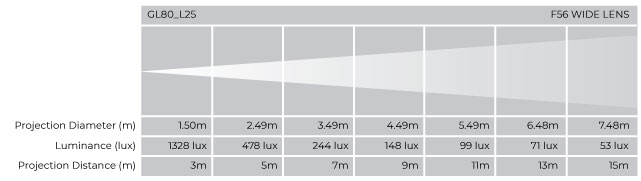

F56 Lens
