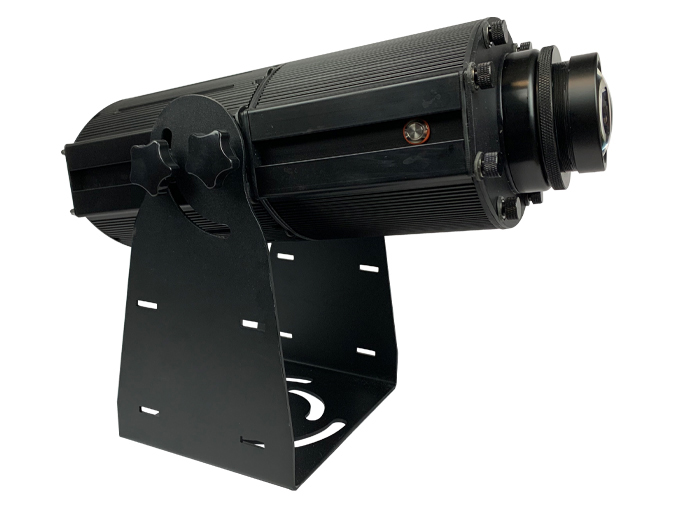

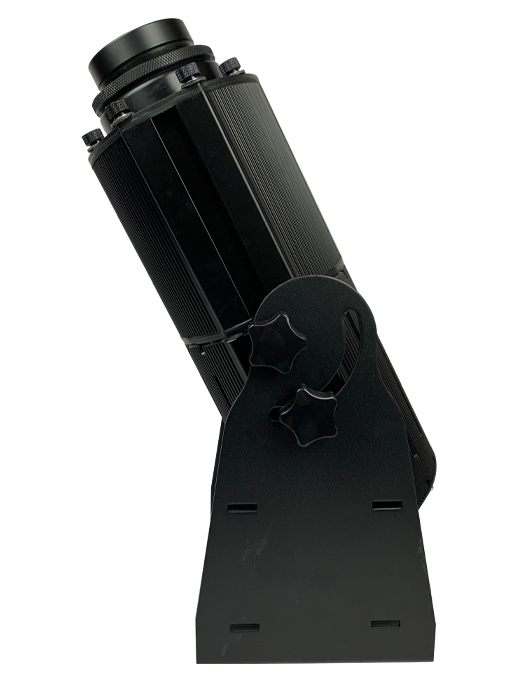

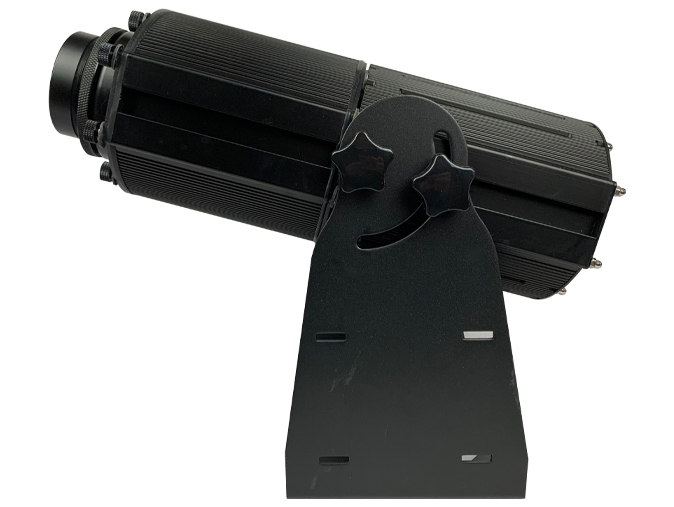

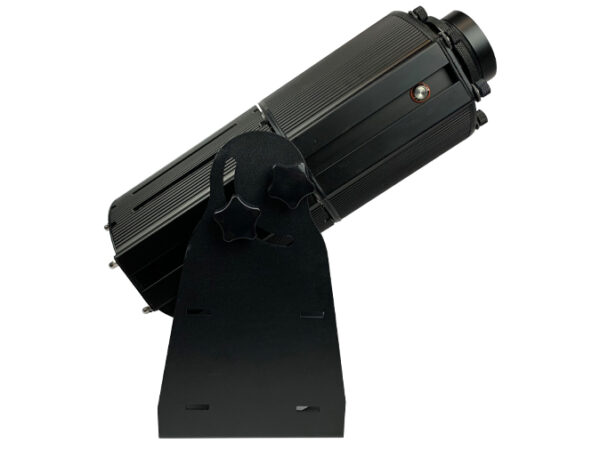

GL200 Gen II LED Gobo Projector

Encased in an IP65 enclosure this fully weatherised fixture is perfect for your outdoor installation and compact and quiet to use indoors.

The high quality optical system produces a crisp vivid gobo image and the flat field gives you a crystal clear projection right to the edge.

All come with your choice of fixed lens to suit your location and built in gobo rotation that can be easily turned on or off using the front facia button.

Features

  • High quality optical system offers sharp image quality
  • IP65 suitable for indoor & outdoor use
  • 2 fixed lens options available as standard (extra wide lenses available on request)
  • Built in rotation
  • Rear cooling fins and waterproof fan protected by 1.5mm mesh
  • Available in either black
  • Cool white LED as standard. Warm white available upon request
Projection Solutions: Large building facade projections | Long throw indoor projections | Recessed projector for bright area | 10m+ evening projection distances | Pole mounted and long throw projections
fixture in use Specifications Image Size and Brightness downloads

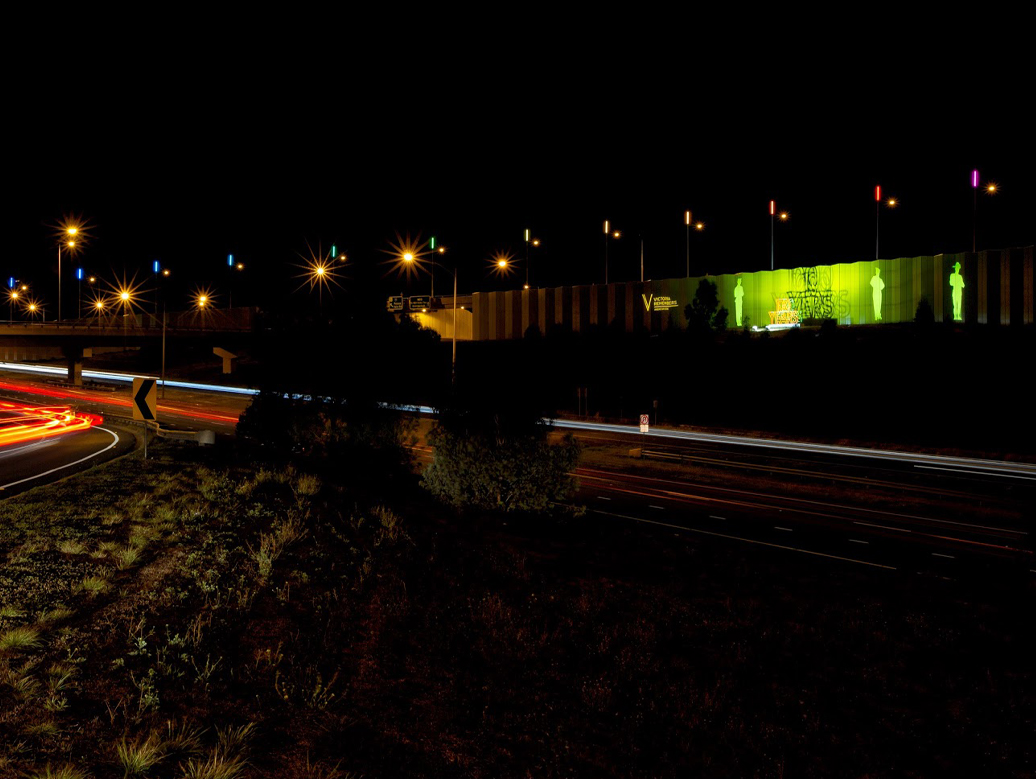

ANZAC projections at Tullamarine Highway Victoria | Grand Lighting GL200 with stock gobos

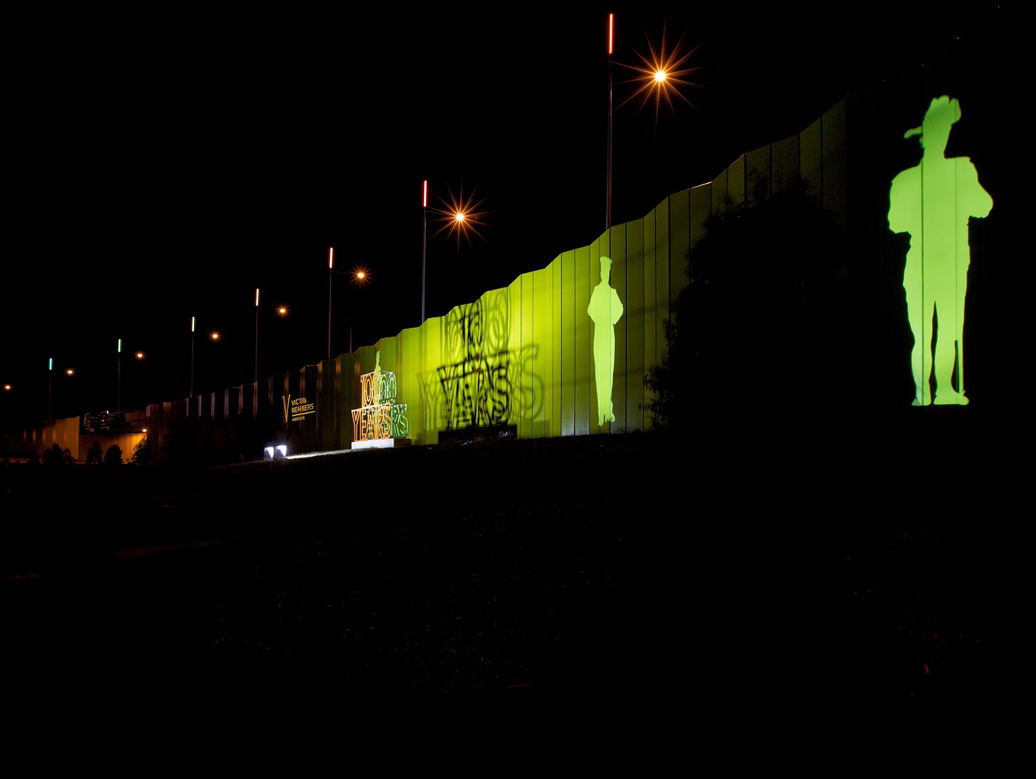

ANZAC projections at Tullamarine Highway Victoria | Grand Lighting GL200 with stock gobos

ANZAC projections at Tullamarine Highway Victoria | Grand Lighting GL200 with stock gobos

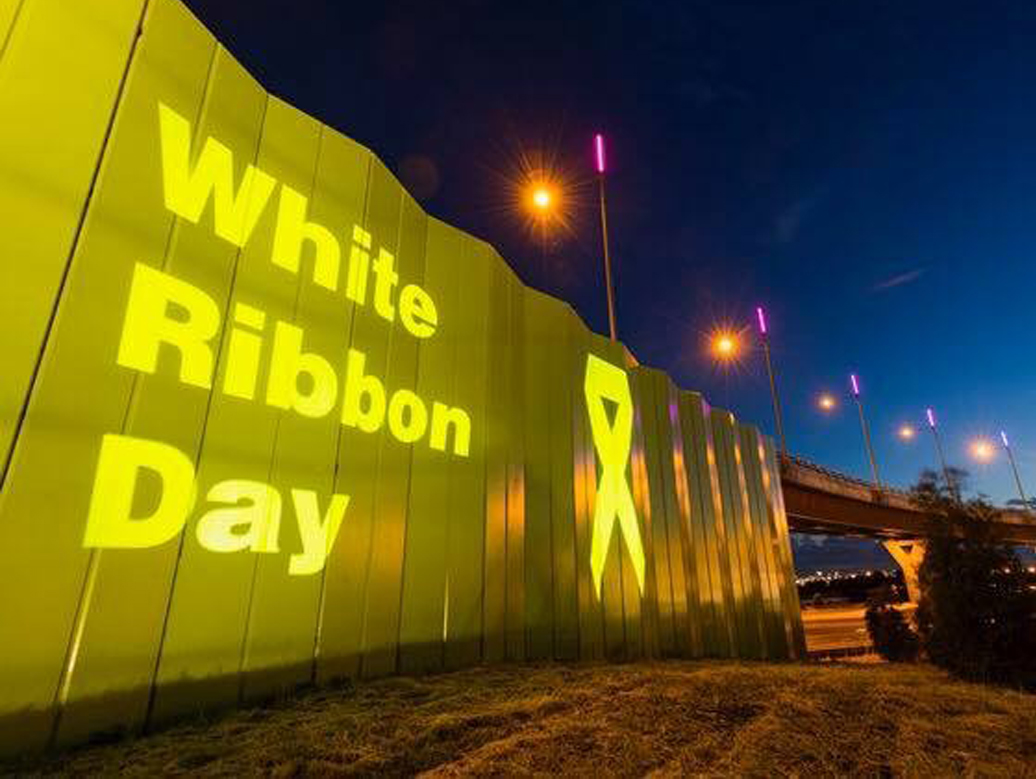

White Ribbon Day Tullamarine Highway Victoria | Grand Lighting GL200 with custom B&W glass gobos

physical dimensions

  • Length (excluding lens): 330mm
  • Length (including lens): approx. 400mm
  • Width (with knobs): 250mm
  • Body Height: 140mm
  • Height (with base): 300mm
  • Weight: 5.6kg
  • External power supply: 228mm x 68mm x 40mm

electrical

  • External power supply IP65 Meanwell HLG-150H-24A
  • Input Voltage: 100-240V AC
  • Average power consumption: 150 watts



Gobos

  • Outside diameter: 66mm (+0/-.03mm)
  • Maximum image diameter: 44mm (for flat field crisp projection eg logos) / 48mm (for soft edges, eg: breakup images)
  • Maximum thickness: up to 5.0mm

Optics

  • Light Source: 200W LED Capsule
  • Cool white 7000k as standard / warm white 3000k available on request
  • LED Lifetime: 50,000 hours*
    * figure obtained under manufacture’s test conditions
  • F115 Narrow Lens – 22°
  • F140 Wide Lens – 18°

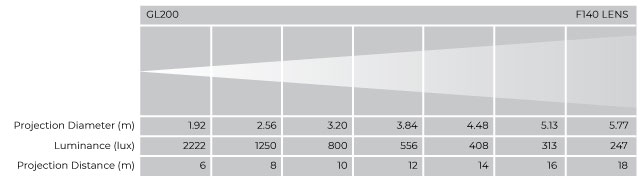

F140 Lens

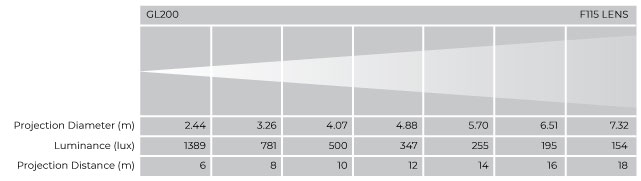

F115 Lens
