Grand Lighting

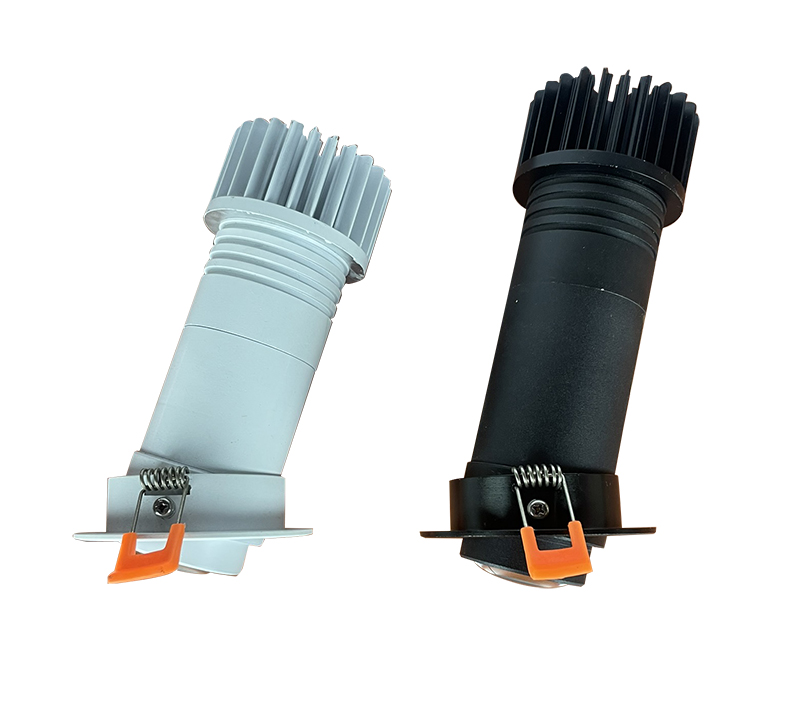

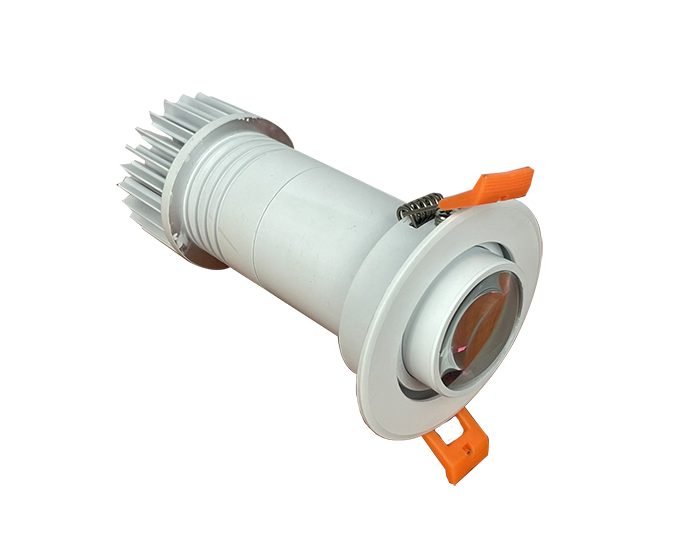

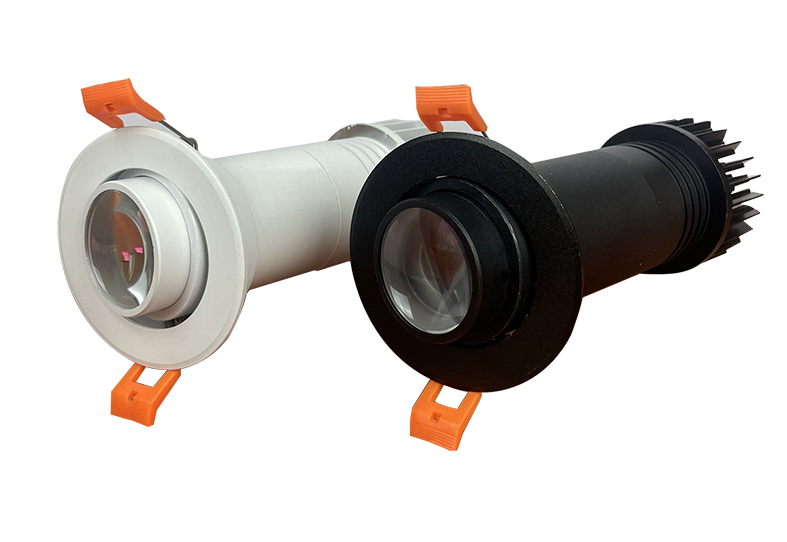

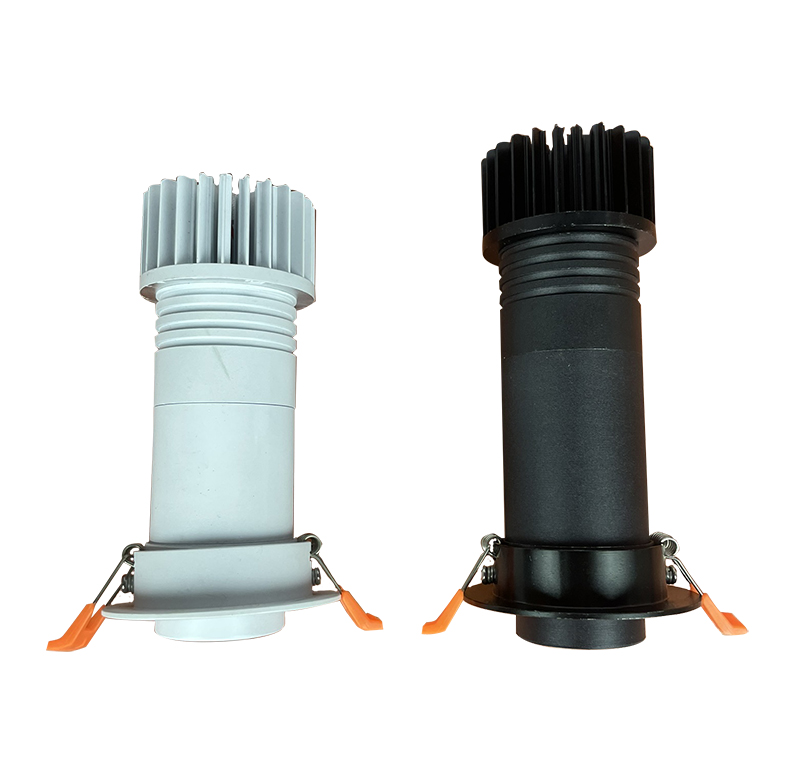

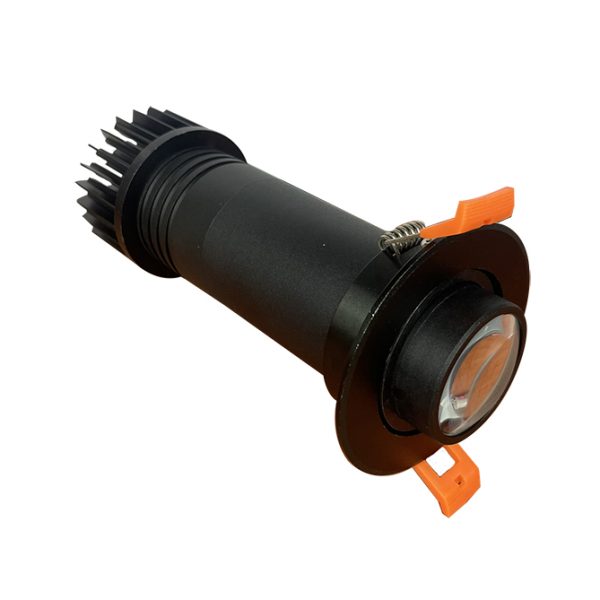

GL10C4 Downlight LED Gobo Projector

Designed to be recessed into the ceiling, the Grand Lighting GL10C4 Downlight is perfect for a seamless look for your business. Combining a high-quality LED, driver, and optical system.

The high-quality optical system produces a crisp vivid gobo image and the flat field gives you a crystal clear projection right to the edge.

The GL10C4 has various lens options available to suit your installation.

Features

  • Designed for recessed installation
  • High-quality optical system offers sharp image quality
  • Simple focusing after install
  • 2 lens options to choose from
  • Passive rear fin cooling
  • Available in black or white
  • 10W 50,000hr LED
  • Cool white LED as standard. Warm white available upon request
Projection Solutions: Logo projection for a business entrance | Floor or room signage | Wayward or directional signage | Retail promotional projection
fixture in use Specifications Image Size and Brightness downloads

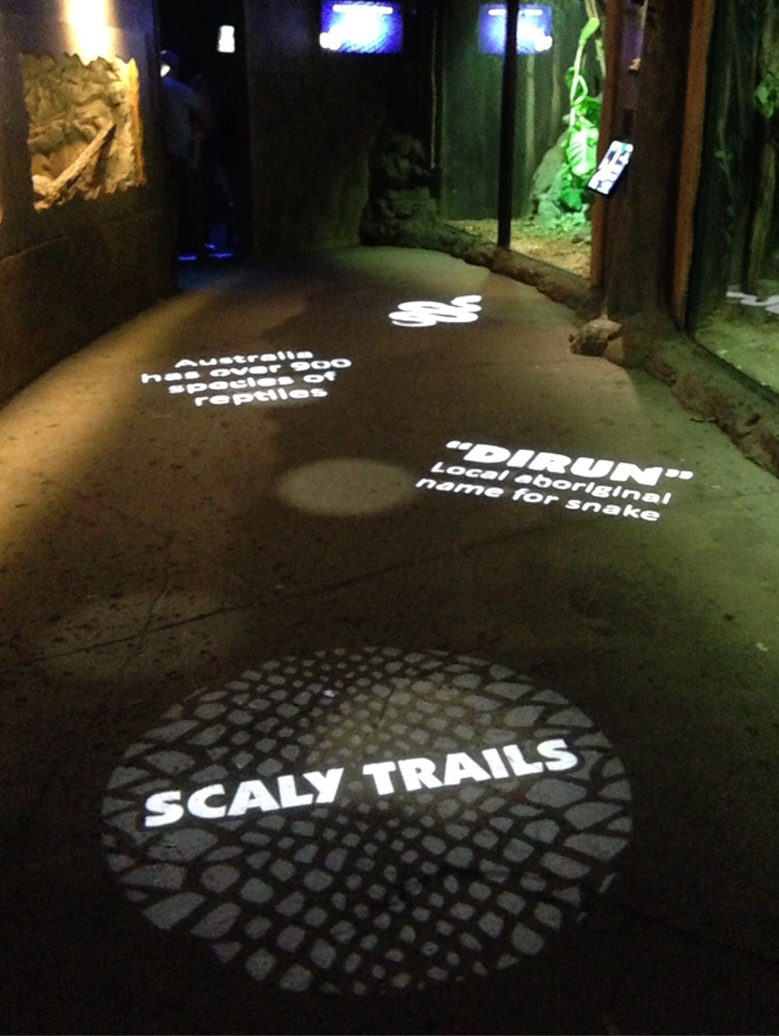

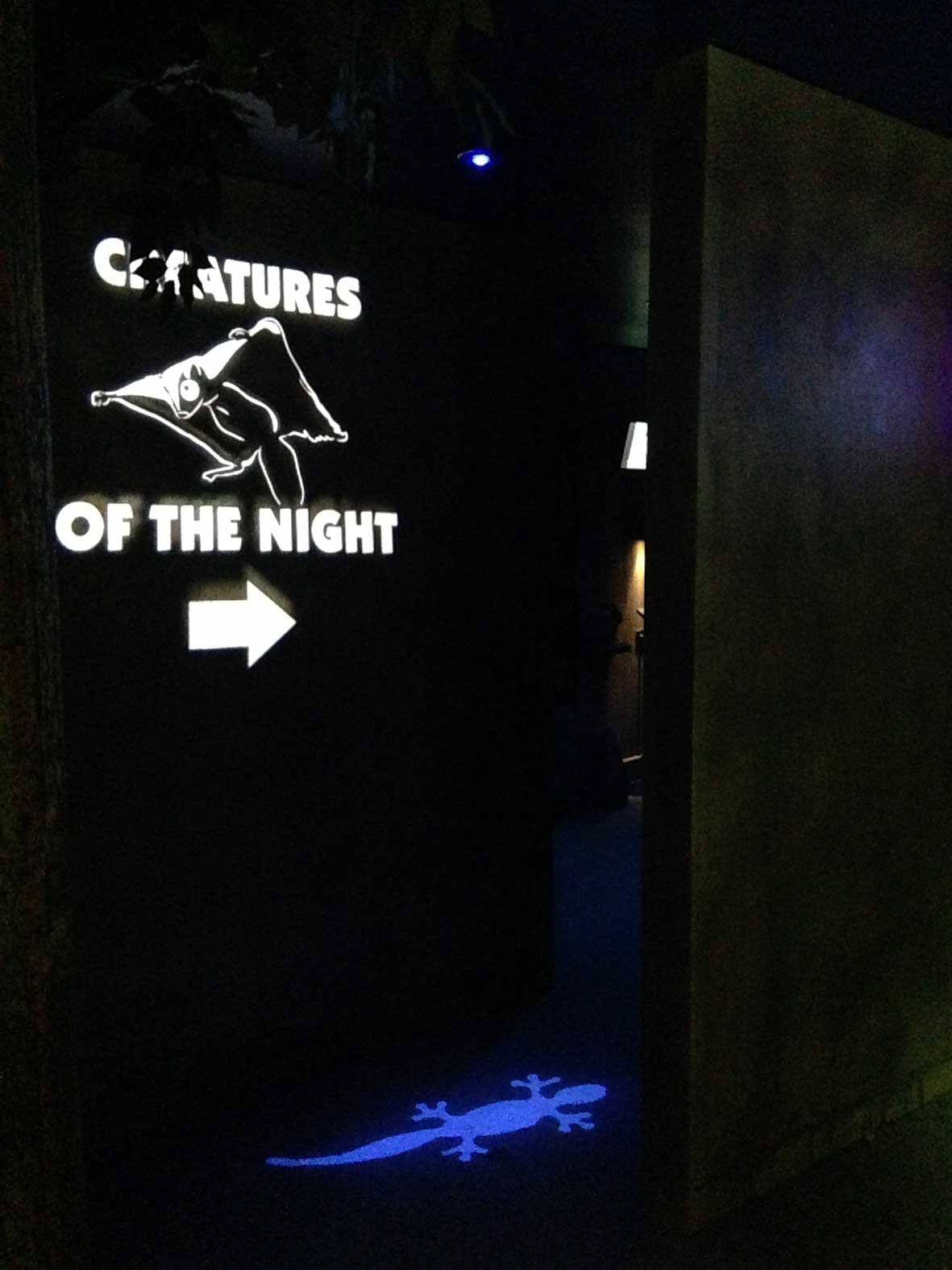

Currumbin Wildlife Sanctuary | GL10C4 with custom B&W glass gobos

Dragonfly | GL10C4 with custom B&W glass gobo and warm white filter

VUE Broadbeach | Grand Lighting GL10C4 with custom B&W glass gobo

Lady K Hair Artistry | Grand Lighting GL10C4 Downlight with custom B&W glass gobo

physical dimensions

  • Length: 150mm-170mm
  • Width: 85mm
  • Weight: 600g

electrical

  • Australian standard 3 pin plug 240V AC
  • Input Voltage: 220-240V AC (110V on request)
  • Average power consumption: 10 watts

Gobos

  • Outside diameter: 37.5mm (+0/-.03mm)
  • Maximum image diameter: 28mm (for flat field crisp projection eg logos)
  • Maximum thickness: up to 5.0mm

Optics

  • Light Source: 10W LED Capsule
  • Cool white 7000k as standard / warm white 3000k available on request
  • LED Lifetime: 50,000 hours*
    * figure obtained under manufacture’s test conditions

Medium Lens

Wide Lens
