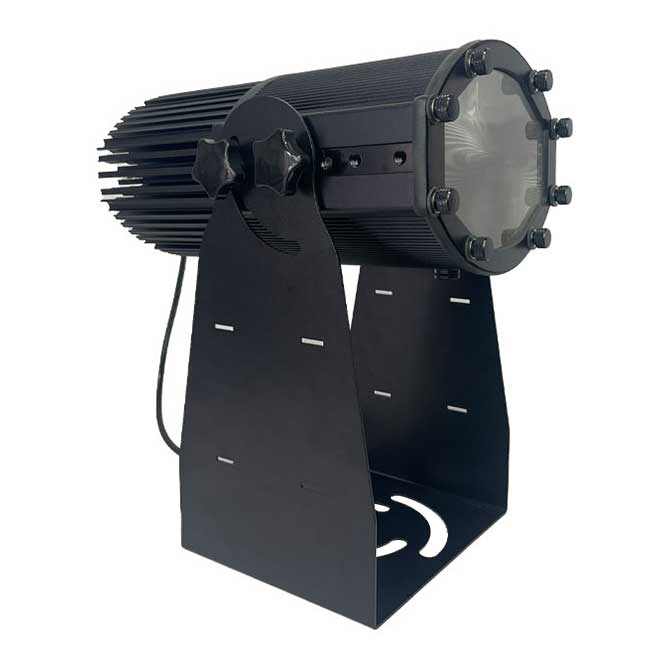

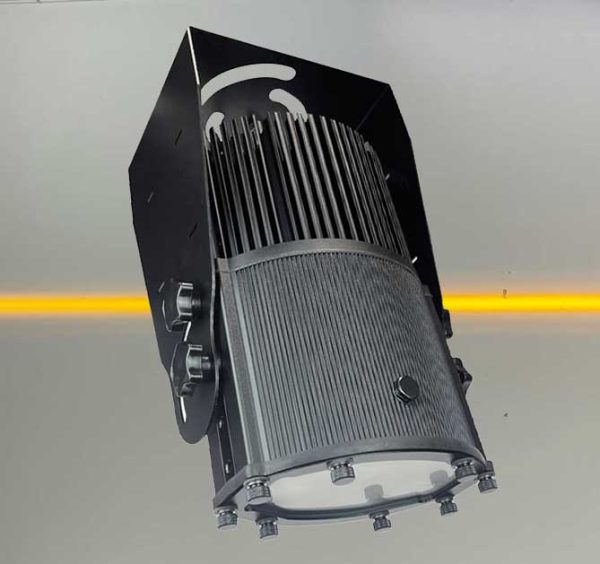

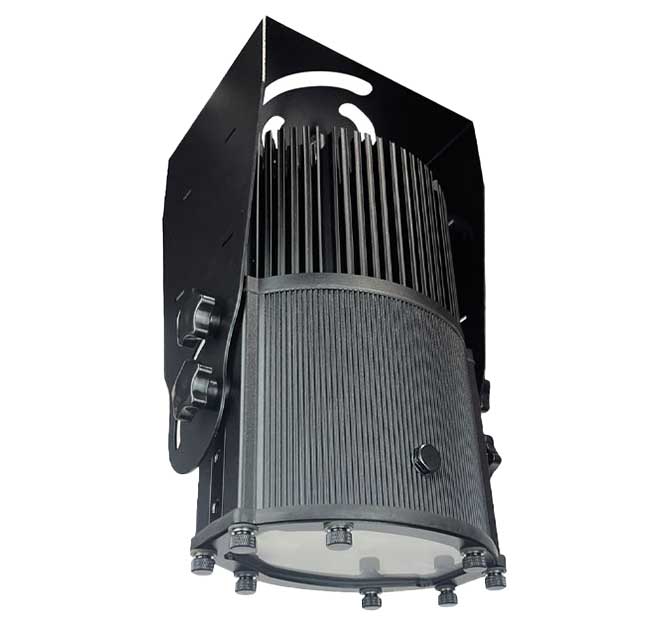

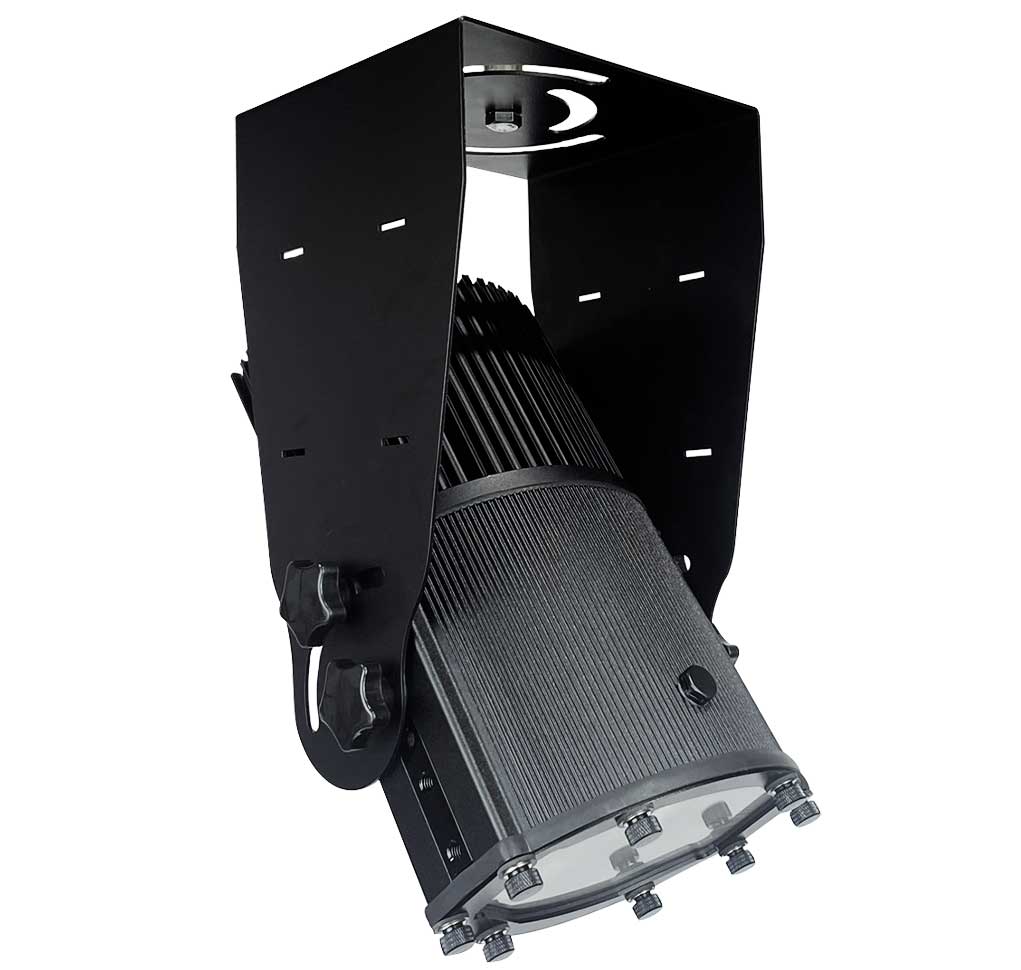

EL80 LED Line Projector

Enhance workplace safety in factories and warehouses with the EL80 LED Line Projector.

Specifically engineered for industrial environments, this projector clearly marks safe walkways, offering a durable and highly visible alternative to traditional painted lines.

For a comprehensive safety solution, combine it with a stop sign or forklift sign projector.

Features

  • IP65 rated suitable for indoor and outdoor use
  • Fanless design – No moving parts or motors
  • Designed for 5m to 10m (depending on ambient light levels)
  • 3 lens options available
  • 3 line colour options: Yellow | Green | Red
  • 80mm average line thickness
  • No need to focus, simply mount and run power
Warehouse and Factory Safety Signage | Walkway Signage

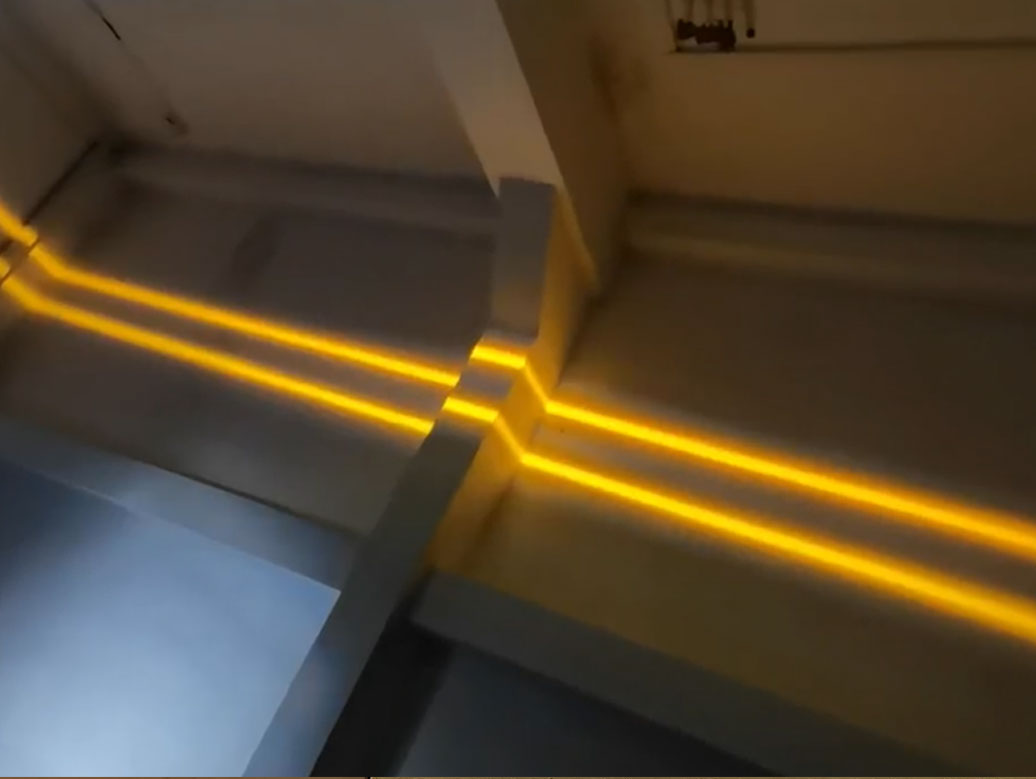

fixture in use Specifications Image Size and Brightness downloads

2 x EL80 LED Line Projector

physical dimensions

  • Length: 300mm
  • Width: 250mm
  • Height (with base): 380mm
  • Weight: 4.5kg

electrical

  • External power supply IP65 Meanwell HLG-80H-20A
  • Input Voltage: 100-240V AC
  • Average power consumption: 80 watts

Optics

  • Light Source: 80W LED Capsule
  • LED Lifetime: 50,000 hours *
    * figure obtained under manufacture’s test conditions

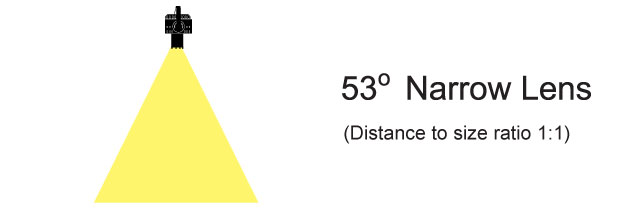

  • 53° Lens – 1:1

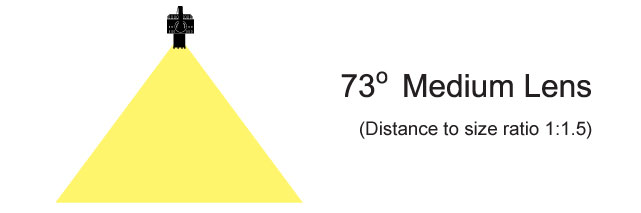

  • 73° Lens – 1:1.5
  • 90° Lens – 1:2

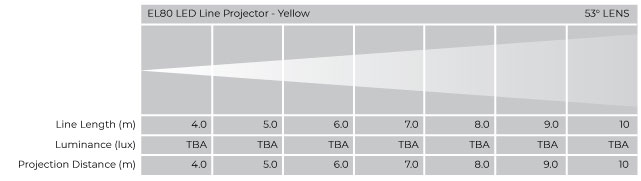

53° Lens - Yellow Projection

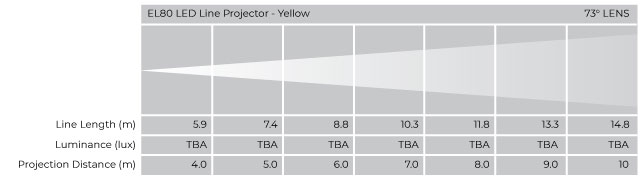

73° Lens - Yellow Projection

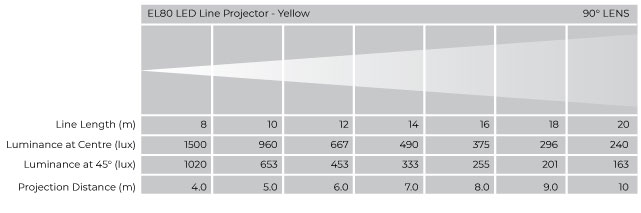

90° Lens - Yellow Projection
